Taper Roller - Bearing Steel / Alloy Steel

AISI 52100/ 100Cr6 Chrome Steel

Taper Rollers made out of this material are martensitic in nature and a have an excellent wear resistance, surface and precision finish, these Taper Rollers are mainly used in mechanical components as well as have a various range of uses.

Applications: Automotive components (steering wheel, brakes, gears), Precision Bearings, pumps, valves, mining, grinding applications, conveyor belts, ball transfer units, sliders, quick release couplings, Wind mill bearings, machine tooling and the list goes on

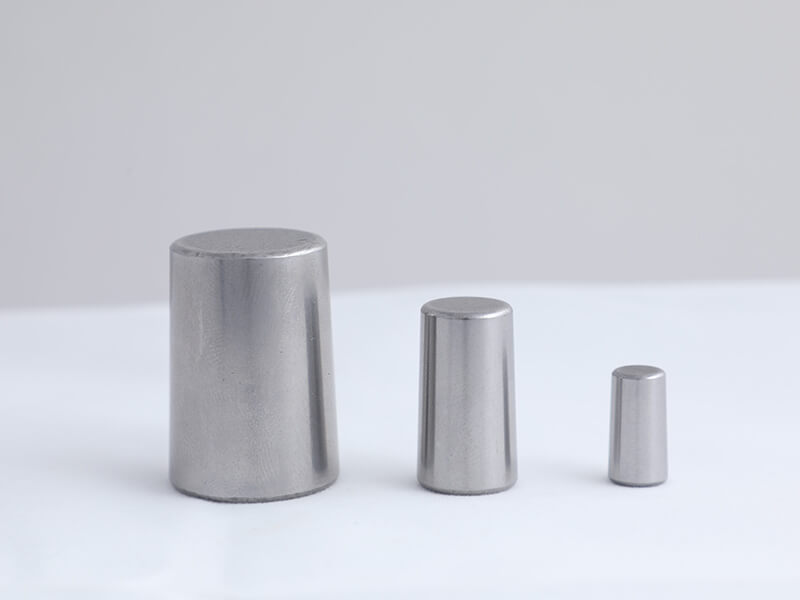

AISI 52100 100cr6 Chrome Steel Taper Rollers

Low alloy martensitic chrome steel, AISI 52100 thanks to its high hardness, wear resistance, surface finishing and dimensional precision, it is widely used to manufacture mechanical components.

Chemical composition for 52100/100Cr6

%C %Si %Mn %P %S %Cr
0.95-1.10 0.35 max 0.20-0.50 0.025 max 0.025 max 1.30-1.60

International Standards and material codes

ITA USA GER FRA UK RUS CHN JAP
100Cr6 52100 1.3505 100C6 534A99 9Ch1 GCr15 SUJ2

Technical Parameters

Property Type U.o.M. Values U.o.M. Values
Hardness Mechanical [HRC] 60 - 66 - -
Ultimate compressive strength Mechanical [MPa] 2500 - 2600 [psix10^3] 362 - 377

Size Range

Product Size Range U.o.M.
Taper Rollers Diameter-8mm to 25mm
Length- 10mm to 50mm
Angle-9⁰00' max
End Face Radius-Infinity
[mm]
