Bearing Steel / Alloy Steel - AISI-E-52100 / 100Cr6

AISI 52100/ 100Cr6 Chrome Steel

Bearing Steel Cylindrical Rollers made out of this material are martensitic in nature and a have an excellent wear resistance, surface and precision finish, these balls and Bearing Cylindrical rollers are mainly used in mechanical components as well as have a various range of uses.

Applications: Automotive components (steering wheel, brakes, gears), Precision Bearings, pumps, valves, mining, grinding applications, conveyor belts, steel ball transfer units, sliders, quick release couplings, Wind mill bearings, machine tooling and the list goes on

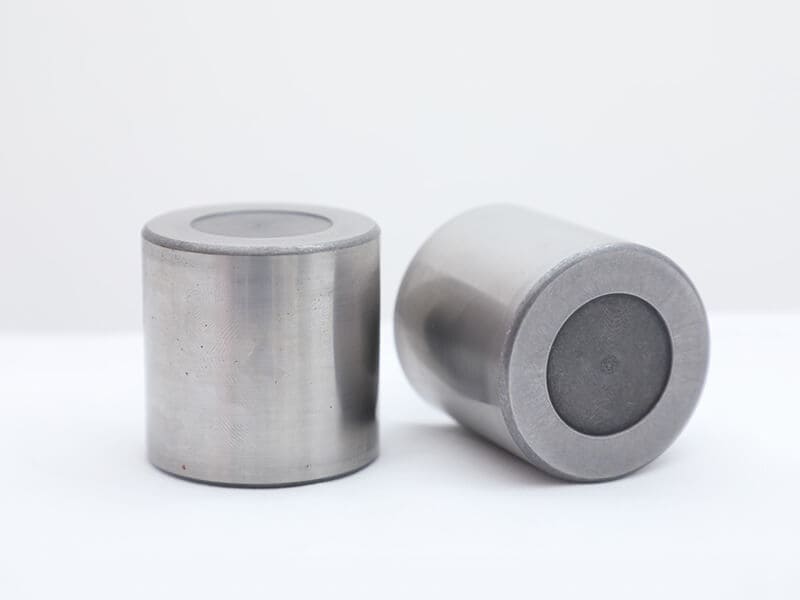

AISI 52100 100cr6 Chrome Steel Rollers

Low alloy martensitic chrome steel, AISI 52100 thanks to its high hardness, wear resistance, surface finishing and dimensional precision, it is widely used to manufacture mechanical components.

Chemical composition for 52100/100Cr6

%C %Si %Mn %P %S %Cr
0.95-1.10 0.35 max 0.20-0.50 0.025 max 0.025 max 1.30-1.60

International Standards and material codes

ITA USA GER FRA UK RUS CHN JAP
100Cr6 52100 1.3505 100C6 534A99 9Ch1 GCr15 SUJ2

Technical Parameters

Property Type U.o.M. Values U.o.M. Values
Hardness Mechanical [HRC] 60 - 66 - -
Ultimate compressive strength Mechanical [MPa] 2500 - 2600 [psix10^3] 362 - 377

Size Range

Product Size Range U.o.M.
Rollers Diameter-8mm to 25mm
Length- 10mm to 40mm.
[mm]
