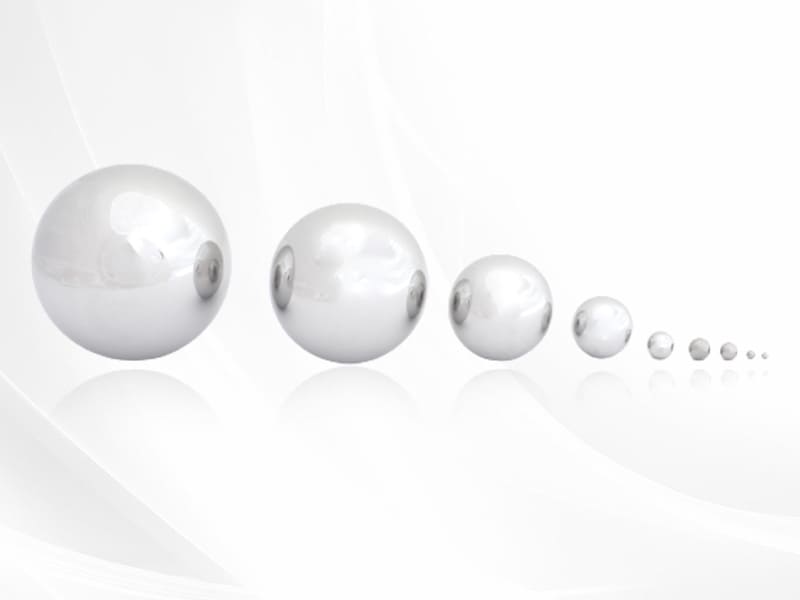

AISI M50 high speed tool steel balls provide excellent mechanical properties and shock resistance. These Tool Stainless Steel Balls have a higher hardness than the usual AISI S2 balls and also have a better wear and tear resistance. Due to the presence of Chromium the corrosion resistance of this steel is better than AISI S2 balls.
Applications :
- Oil and gas industry
- Aerospace
- Applications where temperatures are at the highest
Chemical composition
| %C |
%Si |
%Mn |
%P |
%S |
%Cr |
%Ni |
%Mo |
%Cu |
%Co |
%V |
%W |
| 0.80-0.85 |
0.25 max |
0.15-0.35 |
0.015 max |
0.008 max |
4.00-4.25 |
0.15 max |
4.00-4.50 |
0.10 max |
0.25 max |
0.90-1.10 |
0.25 max |
International Standards and material codes
| USA |
ITA |
GER |
FRA |
UK |
CHN |
| M50/ T11350 |
X80MoCrV4 4 |
1.3551 |
Y80DCV42 16 |
BM50 |
Cr4Mo4V |
Technical Properties
| Property |
Type |
U.o.M. |
Values |
U.o.M. |
Values |
| Hardness |
Mechanical |
[HRC] |
60 - 65 |
- |
- |
| Ultimate tensile strength |
Mechanical |
[MPa] |
2500 - 2700 |
[psix10^3] |
363 - 391 |
Size Range/Grade selection
| Product |
Size Range |
U.o.M. |
Grade Capabilities |
| Balls |
3.00 mm to 40.00 mm |
[mm] |
GR.20 to GR.2000 as per any international standard. |
